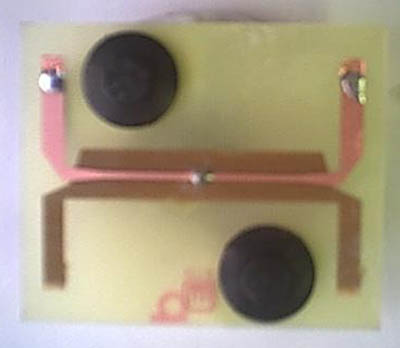

Open it up, and inside we find:

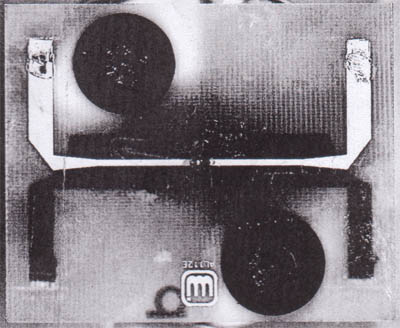

Photocopy of antenna:

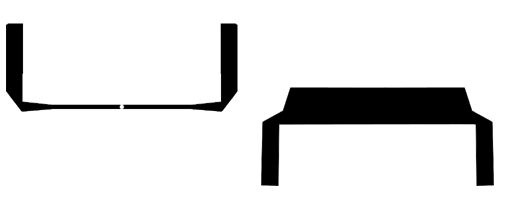

A bit of photoshopping, printing, drawing and etching later:

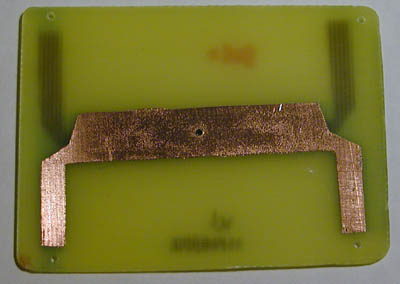

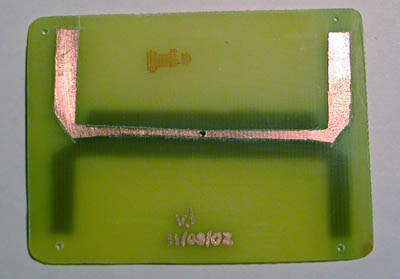

| Topside of board. Cable core connects to this layer. | Underside of board. Shield of cable connects to this. |
|
|
Not too bad for my first circuit board in 10+ years! Total cost of all components and chemicals used: ~AU$4.50

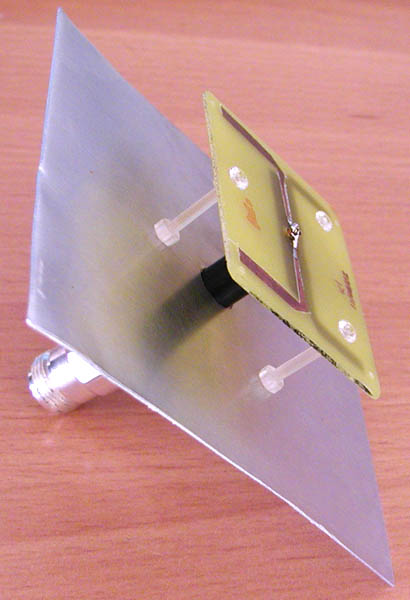

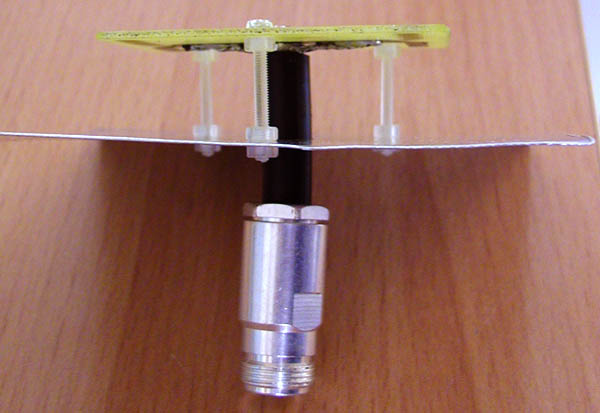

After intalling the backplane, 110mm square, 20mm behind the antenna:
